BGP 설정 TIP
neighbor ~ remote-as ~
1. network ~ mask ~
2. redistribute ospf ~
그리고 redistribute connected
=> 1번과 2번 중 2번이 좀 더 편리하다
라우터끼리의 Hello packet => 10초 간격
라우터끼리의 Dead Interval => 40초 간격
그러나 라우터끼리의 라우팅테이블 변화를 주고받는 시간이 추가되어 실제로는 40초 + a (컨버전스 타임)
컨버전스 타임 문제를 해결하기 위한 방법이 있다.
1. Dead Interval => 40초에서 1초로 줄임
2. BFD (KeepAlive만 응용하는 프로토콜) 추가설정 => Dead Interval를 msec단위로 줄일 수 있다.
3. 스위치를 라우터로 바꾼다.
ACL
eq => equal
lt => less than => eq와 다르게 lt로 지정한 번호 밑의 포트들 모두 포함 => ex. lt 20 => 0~20
gt => greater than => lt와 다르게 gt로 지정한 번호 위의 포트들 모두 포함 => ex. gt 20 => 20~65535
=> telnet, http 접속은 성공
=> ping은 실패
-> ping 실패
-> 웹 접속 성공

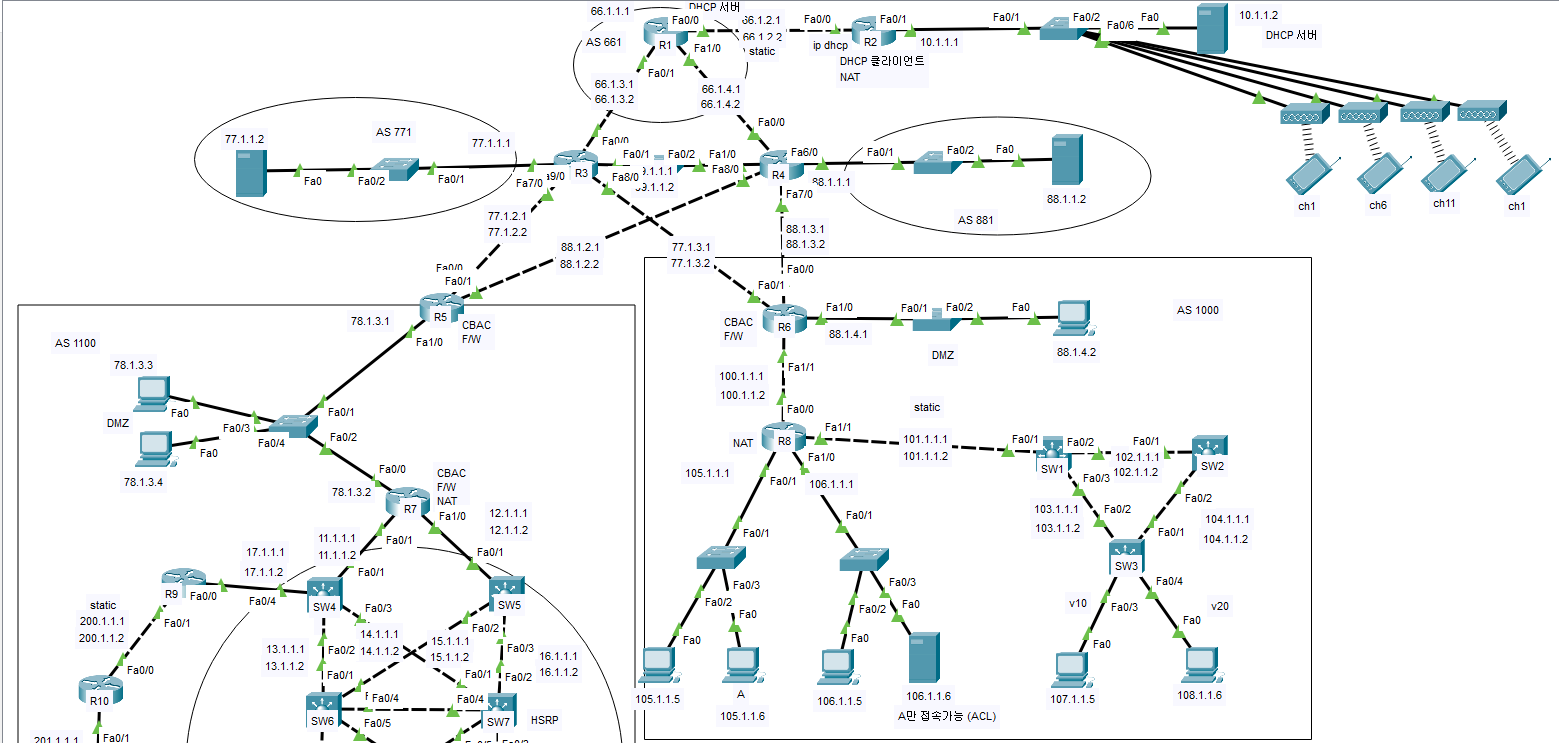

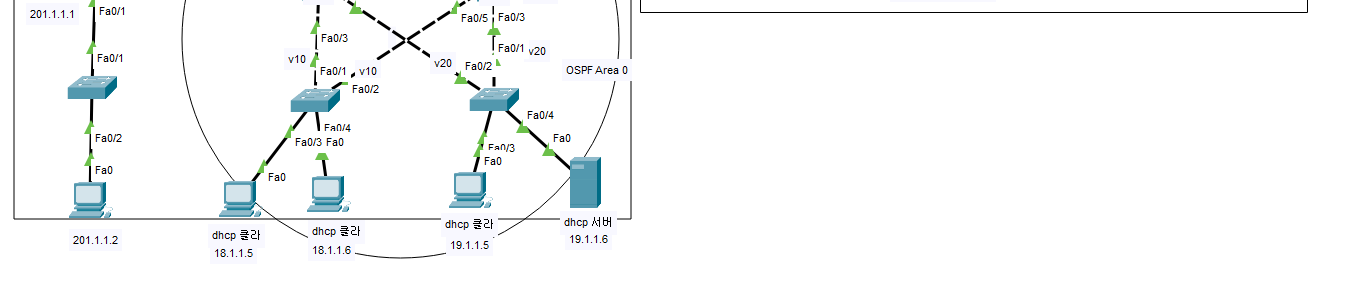

DMZ Zone 기반 ACL 구성
=> OSPF 설정으로 라우팅테이블은 만들어줘야함.
R1
class-map type inspect match-any class-111-map
match access-group 101
class-map type inspect match-any class-122-map
match access-group 102
policy-map type inspect policy-111-map
class type inspect class-111-map
inspect
policy-map type inspect policy-122-map
class type inspect class-122-map
inspect
zone security outzone
zone security inzone
zone security dmzzone
zone-pair security zonepair1 source inzone destination outzone
service-policy type inspect policy-111-map
zone-pair security zonepair2 source outzone destination dmzzone
service-policy type inspect policy-122-map
interface FastEthernet0/0
ip address 11.2.2.1 255.255.255.0
zone-member security outzone
ip ospf 1 area 0
interface FastEthernet0/1
ip address 10.1.3.2 255.255.255.0
zone-member security inzone
ip ospf 1 area 0
interface FastEthernet1/0
ip address 11.2.3.1 255.255.255.0
zone-member security dmzzone
ip ospf 1 area 0
access-list 101 permit tcp 10.0.0.0 0.255.255.255 any eq www
access-list 101 permit tcp 10.0.0.0 0.255.255.255 any eq telnet
access-list 101 permit icmp 10.0.0.0 0.255.255.255 any echo
access-list 102 permit tcp any 11.2.3.0 0.0.0.255 eq www
R1
ip dhcp excluded-address 66.1.2.1
!
ip dhcp pool test
network 66.1.2.0 255.255.255.0
default-router 66.1.2.1
dns-server 88.1.1.2
router bgp 661
bgp log-neighbor-changes
no synchronization
neighbor 66.1.3.2 remote-as 771
neighbor 66.1.4.2 remote-as 881
redistribute connected
R2
interface FastEthernet0/0
ip address dhcp
ip nat outside
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 10.1.1.1 255.255.255.0
ip nat inside
duplex auto
speed auto
ip nat inside source list 1 interface FastEthernet0/0 overload
access-list 1 permit any
R3
router bgp 771
bgp log-neighbor-changes
no synchronization
neighbor 66.1.3.1 remote-as 661
neighbor 99.1.1.2 remote-as 881
neighbor 77.1.2.2 remote-as 1100
neighbor 77.1.3.2 remote-as 1000
redistribute connected
R4
router bgp 881
bgp log-neighbor-changes
no synchronization
neighbor 66.1.4.1 remote-as 661
neighbor 99.1.1.1 remote-as 771
neighbor 88.1.2.2 remote-as 1100
neighbor 88.1.3.2 remote-as 1000
redistribute connected
R5
class-map type inspect match-any class-111-map
match access-group 111
!
policy-map type inspect policy-111-map
class type inspect class-111-map
inspect
!
!
!
zone security outzone
zone security dmzzone
zone-pair security zonepair1 source dmzzone destination outzone
service-policy type inspect policy-111-map
!
!
interface FastEthernet0/0
ip address 77.1.2.2 255.255.255.0
zone-member security outzone
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 88.1.2.2 255.255.255.0
zone-member security outzone
duplex auto
speed auto
!
interface FastEthernet1/0
ip address 78.1.3.1 255.255.255.0
zone-member security dmzzone
ip ospf 1 area 0
router ospf 1
log-adjacency-changes
default-information originate
!
router bgp 1100
bgp log-neighbor-changes
no synchronization
neighbor 77.1.2.1 remote-as 771
neighbor 88.1.2.1 remote-as 881
network 78.1.3.0 mask 255.255.255.0
!
ip classless
ip route 0.0.0.0 0.0.0.0 77.1.2.1
ip route 0.0.0.0 0.0.0.0 88.1.2.1
!
ip flow-export version 9
!
!
access-list 111 permit tcp any any eq www
access-list 111 permit icmp any any echo
access-list 111 permit udp any any eq domain
R6
class-map type inspect match-any class-114-map
match access-group 114
class-map type inspect match-any class-123-map
match access-group 123
!
policy-map type inspect policy-114-map
class type inspect class-114-map
inspect
!
policy-map type inspect policy-123-map
class type inspect class-123-map
inspect
!
!
!
zone security outzone
zone security inzone
zone security dmzzone
zone-pair security zonepair3 source inzone destination outzone
service-policy type inspect policy-114-map
zone-pair security zonepair4 source outzone destination dmzzone
service-policy type inspect policy-123-map
!
!
interface FastEthernet0/0
ip address 88.1.3.2 255.255.255.0
zone-member security outzone
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 77.1.3.2 255.255.255.0
zone-member security outzone
duplex auto
speed auto
!
interface FastEthernet1/0
ip address 88.1.4.1 255.255.255.0
zone-member security dmzzone
duplex auto
speed auto
!
interface FastEthernet1/1
ip address 100.1.1.1 255.255.255.0
zone-member security inzone
ip ospf 1 area 0
router ospf 1
log-adjacency-changes
default-information originate
!
router bgp 1000
bgp log-neighbor-changes
no synchronization
neighbor 88.1.3.1 remote-as 881
neighbor 77.1.3.1 remote-as 771
network 88.1.4.0 mask 255.255.255.0
redistribute ospf 1
!
ip classless
ip route 0.0.0.0 0.0.0.0 77.1.3.1
ip route 0.0.0.0 0.0.0.0 88.1.3.1
!
ip flow-export version 9
!
!
access-list 114 permit tcp any any eq www
access-list 114 permit tcp any any eq telnet
access-list 114 permit icmp any any echo
access-list 123 permit tcp any any eq www
access-list 123 permit icmp any any echo
R7
class-map type inspect match-any class-113-map
match access-group 113
!
policy-map type inspect policy-113-map
class type inspect class-113-map
inspect
!
!
!
zone security inzone
zone security dmzzone
zone-pair security zonepair2 source inzone destination dmzzone
service-policy type inspect policy-113-map
!
!
interface FastEthernet0/0
ip address 78.1.3.2 255.255.255.0
zone-member security dmzzone
ip ospf 1 area 0
ip nat outside
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 11.1.1.1 255.255.255.0
zone-member security inzone
ip ospf 1 area 0
ip nat inside
duplex auto
speed auto
!
interface FastEthernet1/0
ip address 12.1.1.1 255.255.255.0
zone-member security inzone
ip ospf 1 area 0
ip nat inside
router ospf 1
log-adjacency-changes
!
ip nat inside source list 2 interface FastEthernet0/0 overload
ip classless
!
ip flow-export version 9
!
!
access-list 2 permit any
access-list 113 permit tcp any any eq www
!
R8
interface FastEthernet0/0
ip address 100.1.1.2 255.255.255.0
ip ospf 1 area 0
ip nat outside
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 105.1.1.1 255.255.255.0
ip access-group 190 in
ip nat inside
duplex auto
speed auto
!
interface FastEthernet1/0
ip address 106.1.1.1 255.255.255.0
ip nat inside
duplex auto
speed auto
!
interface FastEthernet1/1
ip address 101.1.1.1 255.255.255.0
ip nat inside
ip nat inside source list 5 interface FastEthernet0/0 overload
ip classless
ip route 103.0.0.0 255.0.0.0 101.1.1.2
ip route 102.0.0.0 255.0.0.0 101.1.1.2
ip route 104.0.0.0 255.0.0.0 101.1.1.2
ip route 107.0.0.0 255.0.0.0 101.1.1.2
ip route 108.0.0.0 255.0.0.0 101.1.1.2
ip route 0.0.0.0 0.0.0.0 100.1.1.1
!
ip flow-export version 9
!
!
access-list 5 permit any
access-list 190 permit tcp host 105.1.1.6 host 106.1.1.6 eq www
R9
interface FastEthernet0/0
ip address 17.1.1.2 255.255.255.0
ip ospf 1 area 0
router ospf 1
log-adjacency-changes
redistribute static subnets
!
ip classless
ip route 201.1.1.0 255.255.255.0 200.1.1.2
R10
ip route 0.0.0.0 0.0.0.0 200.1.1.1
SW1
router eigrp 100
redistribute static
network 103.1.1.0 0.0.0.255
network 102.1.1.0 0.0.0.255
network 107.1.1.0 0.0.0.255
network 108.1.1.0 0.0.0.255
auto-summary
!
ip classless
ip route 0.0.0.0 0.0.0.0 101.1.1.1
SW2
router eigrp 100
network 102.1.1.0 0.0.0.255
network 104.1.1.0 0.0.0.255
network 107.1.1.0 0.0.0.255
network 108.1.1.0 0.0.0.255
SW3
interface Vlan10
mac-address 000a.f3d8.8e01
ip address 107.1.1.1 255.255.255.0
!
interface Vlan20
mac-address 000a.f3d8.8e02
ip address 108.1.1.1 255.255.255.0
!
router eigrp 100
network 107.1.1.0 0.0.0.255
network 103.1.1.0 0.0.0.255
network 104.1.1.0 0.0.0.255
network 108.1.1.0 0.0.0.255
SW4
interface FastEthernet0/1
no switchport
ip address 11.1.1.2 255.255.255.0
ip ospf 1 area 0
duplex auto
speed auto
!
interface FastEthernet0/2
no switchport
ip address 13.1.1.1 255.255.255.0
ip ospf 1 area 0
duplex auto
speed auto
!
interface FastEthernet0/3
no switchport
ip address 14.1.1.1 255.255.255.0
ip ospf 1 area 0
duplex auto
speed auto
!
interface FastEthernet0/4
no switchport
ip address 17.1.1.1 255.255.255.0
ip ospf 1 area 0
SW5
interface FastEthernet0/1
no switchport
ip address 12.1.1.2 255.255.255.0
ip ospf 1 area 0
duplex auto
speed auto
!
interface FastEthernet0/2
no switchport
ip address 15.1.1.1 255.255.255.0
ip ospf 1 area 0
duplex auto
speed auto
!
interface FastEthernet0/3
no switchport
ip address 16.1.1.1 255.255.255.0
ip ospf 1 area 0
SW6
interface FastEthernet0/1
no switchport
ip address 13.1.1.2 255.255.255.0
ip ospf 1 area 0
duplex auto
speed auto
!
interface FastEthernet0/2
no switchport
ip address 15.1.1.2 255.255.255.0
ip ospf 1 area 0
interface Vlan10
mac-address 0060.2f1a.0801
ip address 18.1.1.3 255.255.255.0
ip helper-address 19.1.1.6
standby 10 ip 18.1.1.1
standby 10 priority 150
standby 10 preempt
!
interface Vlan20
mac-address 0060.2f1a.0802
ip address 19.1.1.3 255.255.255.0
ip helper-address 19.1.1.6
standby 20 ip 19.1.1.1
standby 20 priority 50
!
router ospf 1
log-adjacency-changes
network 18.0.0.0 0.255.255.255 area 0
network 19.0.0.0 0.255.255.255 area 0
SW7
interface FastEthernet0/1
no switchport
ip address 14.1.1.2 255.255.255.0
ip ospf 1 area 0
duplex auto
speed auto
!
interface FastEthernet0/2
no switchport
ip address 16.1.1.2 255.255.255.0
ip ospf 1 area 0
interface Vlan10
mac-address 0004.9aa0.7301
ip address 18.1.1.4 255.255.255.0
ip helper-address 19.1.1.6
standby 10 ip 18.1.1.1
standby 10 priority 50
!
interface Vlan20
mac-address 0004.9aa0.7302
ip address 19.1.1.4 255.255.255.0
ip helper-address 19.1.1.6
standby 20 ip 19.1.1.1
standby 20 priority 150
standby 20 preempt
!
router ospf 1
log-adjacency-changes
network 18.0.0.0 0.255.255.255 area 0
network 19.0.0.0 0.255.255.255 area 0
